User Targeting

Changing Flag Behavior for a Defined Audience

The goal of this lab is route a subset of the microblog’s audience to experience one value of a feature flag, while the rest of the users will see a separate value. The intended sub-group will be created in the CloudBees Feature Management interface and defined by properties in code, and then communicated to the CloudBees Feature Management dashboard through the setup function in the flags.js file. This lab will implement logic to display the sidebar only for logged in, Beta Users.

Add Properties from Code to CloudBees Feature Management Dashboard

  1. First we need to make sure the isLoggedIn and betaAccess functions are available to be used in the flags.js file. Make sure you are on the development branch of the microblog-frontend repository, navigate to the flags.js file (src/utils/flags.js). Click the pencil icon to edit the file. Edit flags.js on development branch
  2. Allow flags.js to call isLoggedIn and betaAccess functions. Import store and betaAccess from their respective definition files. Starting on Line 2, include the following import calls:

    import store from '../store'
    import { betaAccess } from './users'

  3. The isLoggedIn and betaAccess boolean functions have to be communicated to the CloudBees Feature Management dashboard. To accomplish this, set up a setCustomBooleanProperty call for each of the functions. Before the Rox.register line, add the following lines:

    Rox.setCustomBooleanProperty('isLoggedIn', store.getters.isLoggedIn)
    Rox.setCustomBooleanProperty('hasBetaAccess', betaAccess())

  4. Review your edits with updated code below

    Click here to expand

    import Rox from 'rox-browser'
    import store from '../store'
    import { betaAccess } from './users'

    export const Flags =
    {
      sidebar: new Rox.Flag(false),
      title: new Rox.Flag(false)
    }

    export const configurationFetchedHandler = fetcherResults => {
      console.log('The configuration status is: ' + fetcherResults.fetcherStatus)
      if (fetcherResults.hasChanges && fetcherResults.fetcherStatus === 'APPLIED_FROM_NETWORK') {
        window.location.reload(false)
      } else if (fetcherResults.fetcherStatus === 'ERROR_FETCH_FAILED') {
        console.log('Error occured! Details are: ' + fetcherResults.errorDetails)
      }
    }

    async function initCloudBees () {
      const options = {
        configurationFetchedHandler: configurationFetchedHandler
      }
      Rox.setCustomBooleanProperty('isLoggedIn', store.getters.isLoggedIn)
      Rox.setCustomBooleanProperty('hasBetaAccess', betaAccess())
      Rox.register('default', Flags)
      await Rox.setup(process.env.VUE_APP_CLOUDBEES_KEY, options)
    }

    initCloudBees().then(function () {
      console.log('Done loading CloudBees Feature Management')
    })


5. Create a commit message (e.g. “Added setCustomBooleanProperty”). Commit changes directly to the development branch. Open the new deployment URL, so that the properties can be created to the dashboard.

Create a Target Group Based on Custom Properties

  1. In the CloudBees Feature Management dashboard, navigate to the Target Groups displayed on the left. Select the Create a New Group button in the middle of the resulting page.
  2. We are going to create a new Target Group, useful when defined by 2 or more customProperties. Enter BetaUsers as the Name of the new group, a subset that will be defined by the isLoggedIn and betaAccess properties.
  3. A microblog user is considered part of the BetaUsers group when both of the following conditions are met:

    • isLoggedIn is True
    • hasBetaAccess is True
    • Reflect this logic in the BetaUsers Target Group Window be defining the first Condition as isLoggedIn Is True. Then, Add a New Condition, select the Matches All Conditions option, and the select the betaAccess Property as Is True.

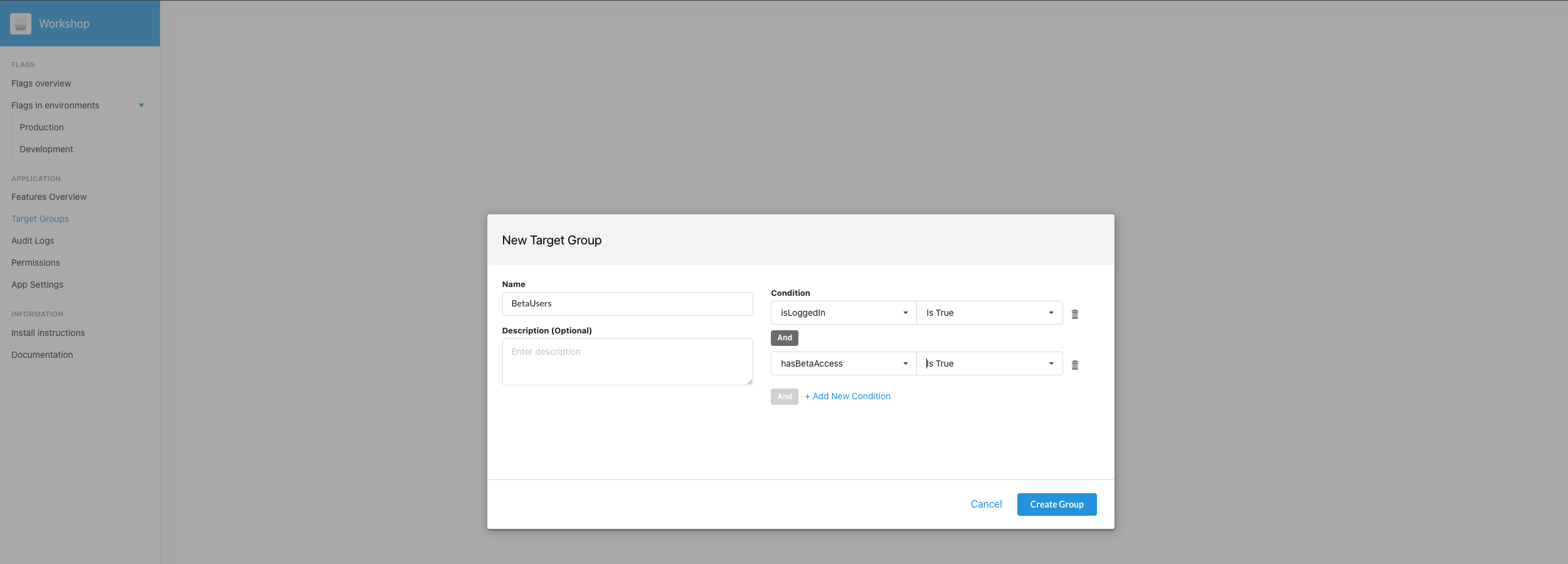

  4. Once your BetaUsers New Target Group definition looks similar to screenshot below click Create Group button so it can be used in experiments. New target group

Using a Target Group in a Configuration

  1. Within the CloudBees Feature Management dashboard, navigate to the Development environment, and click on the sidebar configuration.
  2. Create a new condition by selecting Add New Condition. Within the new condition, change the audience selection from All Users to Target Group. Edit the remainder of the if condition block so that _for a Target Group that matches any of BetaUsers, the sidebar flag value is True.

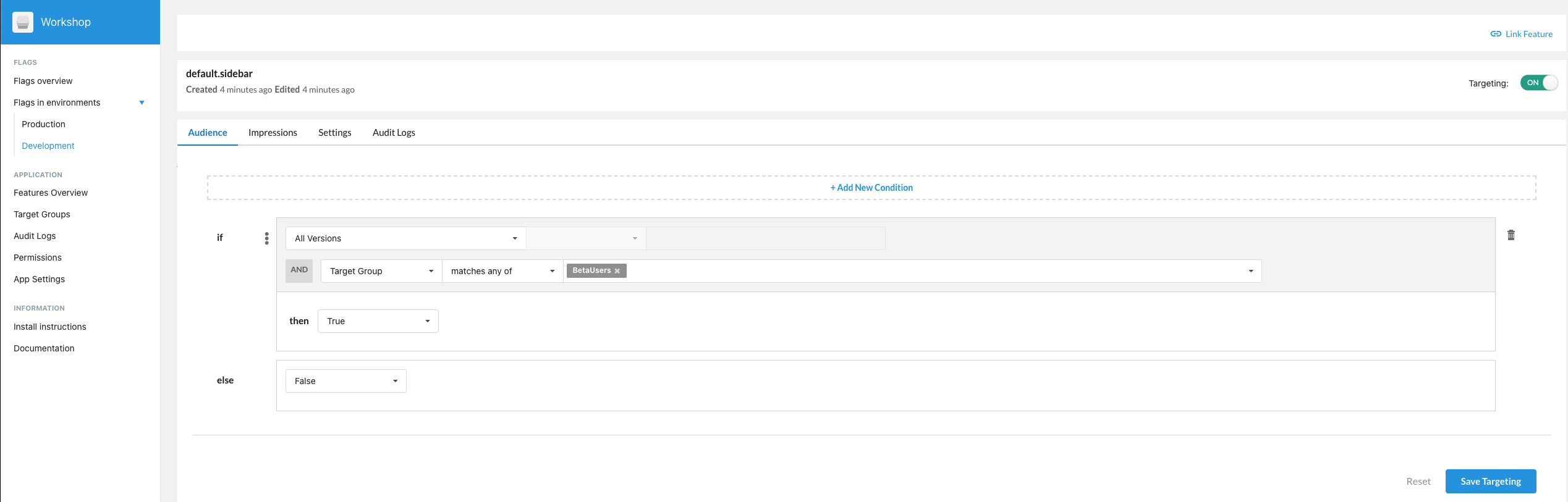

  3. Edit the older condition that became the else block such that the sidebar flag value will be False. The configuration modifications should match the following screenshot. Update sidebar experiment
  4. Apply the configuration changes by clicking Save Targeting.
  5. Navigate to the microblog website to test the configuration logic.
    • Log in with the username admin and the password admin and then navigate back to the homepage. The sidebar should be hidden!
    • Log out, and sign in with the username betauser and betauser password. Upon, navigating back to the homepage the sidebar is now displayed (you may need to refresh the browser page), as we configured it to be only for Beta Users.

Lab 4 Completed!

Congratulations! You have finished Lab 4!
